Tronair Bombardier Dash 8 Q400

Towbar

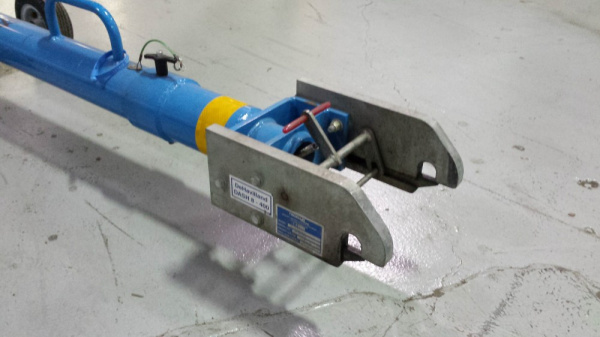

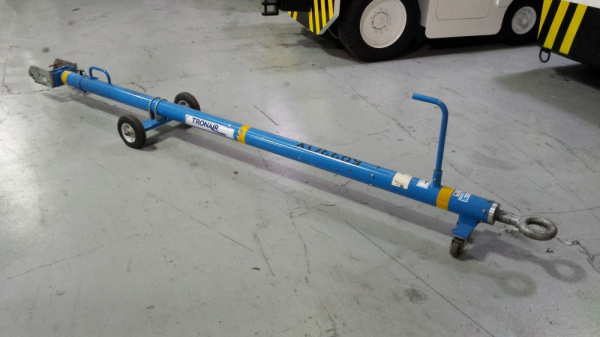

The Tronair Model 01-1201-0010 Multi-Head Towbar is a multiple aircraft towbar for use with the Tronair Series 500 Multi-Heads. The multi-head towbar includes pneumatic tires in addition to casters at the tug end. There is an eyebolt at the towing end of the towbar which incorporates a spring to dampen shock loads. The Tronair Model 01-0400-0000 towbar head attachment is designed for use with Tronair Multi-Head Towbar. The towbar head attachment uses a sliding pin/stationary pin arrangement to interface with the aircraft tow point. Compatible with BOMBARDIER (REGIONAL) DASH 8-Q400

Read more

No longer available: Call us for info

Specification

  • Transmission: Manual

1201-0010 Towbar:

Maximum Aircraft Gross Weight: 75,000 lbs (34 metric ton)

Dimensions:

  • Length: 126 ¾ in (321.9 cm) From eyebolt centerline to end of towbar
  • Width: 21 7/8 in (55.6 cm)
  • Height: 7 ¾ in (19.2 cm) From ground to towbar tube centerline
  • Tube: 4 in (10.16 cm) diameter

Weight: 102 lbs (46.3 kg)

01-0400-0000, Dash 8-400, Towbar Multi-Head:

Maximum Aircraft Gross Weight: 65,400 lbs (29.7 Metric tons)

Dimensions:

  • Length: 20.9 in (53 cm)
  • Width: 9.4 in (24 cm)
  • Height: 5 in (12.7 cm)

Weight: 35 lbs (15.9 kg)

Download product information >
